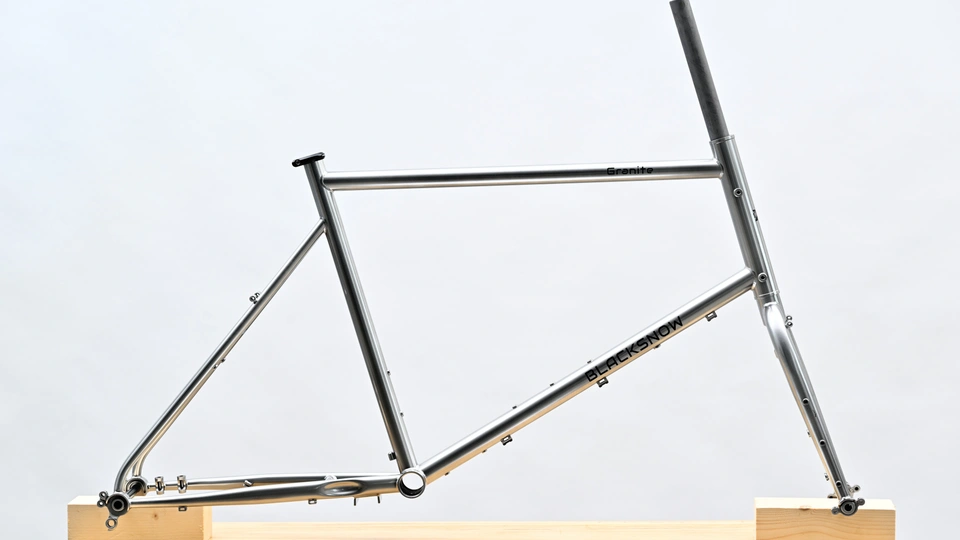

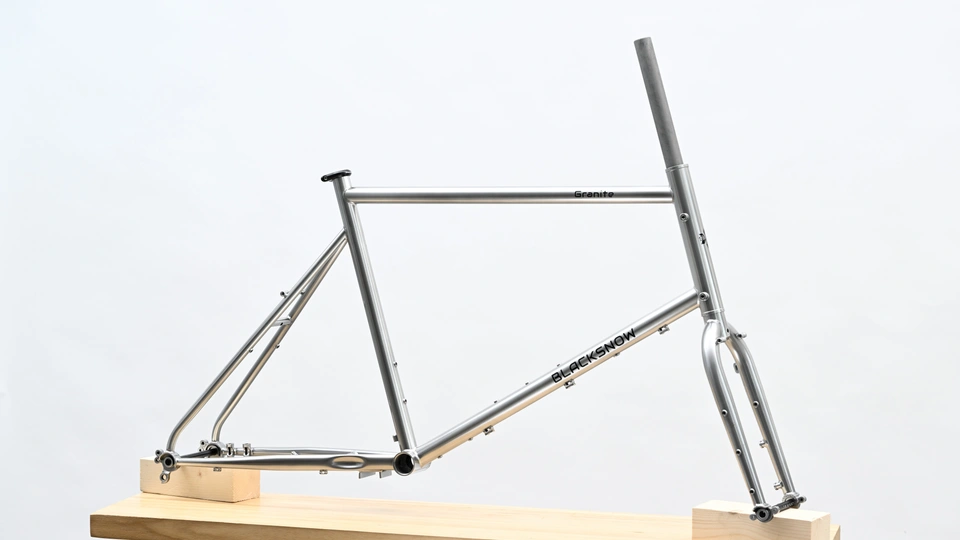

Granite Pro Frameset details
With the success of the Blacksnow Granite mini velo model, our founder Zhan decided to bring some new features on Granite to our audience.
Granite Pro shares the same geometry as Granite and Granite EBB, but just as its name, Thru-axle, flat mount disc, and Blacksnow dedicated FC05 front rack made this model a more professional version.
The difference between the Granite models is below.
Now 2 color is available for Granite Pro 2025 version: Silver and yellow. If you have any interest, please contact your closest dealer or distributor.
| Model | Axle | Bottom Bracket | Brake | Head Tube Front Rack | Others |
|---|---|---|---|---|---|
| Granite | 100 / 135 QR | BSA 68 | IS / PM | / | / |
| Granite Pro | 100-12 / 142-12 TA | BSA 68 | FM | FC05 | / |
| Granite EBB | 100 / 135 QR | BSA 68 W/ EBB | IS / PM | FC05 | Belt Split |
| Geometry Parameter | M | L | XL |
|---|---|---|---|
| Seat Tube (C-T) | 420 mm | 460 mm | 500 mm |
| Seat Tube (C-C) | 380 mm | 420 mm | 460 mm |
| Effective Top Tube | 560 mm | 590 mm | 610 mm |
| Chain Stay | 420 mm | 420 mm | 420 mm |
| Head Tube | 200 mm | 240 mm | 240 mm |
| Head Tube Angle | 73° | 73° | 73° |
| Seat Tube Angle | 72° | 72° | 72° |
| BB Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 689 mm | 728 mm | 754 mm |
| Top Tube Angle | 7.03° | 6.73° | 2.76° |
| Reach | 410 mm | 425 mm | 445 mm |
| Stack | 462 mm | 509 mm | 509 mm |
| Fork Rake | 25 mm | 25 mm | 25 mm |
| Fork Top Tube Length | 400 mm | 400 mm | 450 mm |
| Fork Axle to Crown | 320 mm | 320 mm | 320 mm |
| Wheelbase | 1005 mm | 1035 mm | 1054 mm |
| Specification | Details |
|---|---|
| Frame Material | 4130 Cr-Mo, main triangle double butted to 0.9–0.6–0.9mm |
| Fork Material | 4130 Cr-Mo |
| Max Tire (w/o fender) | 20" × 2.4" |
| Max Tire (w/ fender) | 20" × 2.0" |
| Fork Height (axle to crown) | 320 mm |
| Fork Offset | 25 mm |
| Headset | 34 mm |
| Seat Post | 27.2 mm |
| Seat Collar | 29.8 mm |
| Front Derailleur | N/A |
| Bottom Bracket | 68 mm BSA threaded (EBB shell) |
| Crank Set | 45T (1X crankset) |
| Front Brake | Flat mount, max 160 mm rotor |
| Front Axle | 100-12 mm Thru-Axle (TA) |
| Rear Brake | Flat mount, max 160 mm rotor |
| Rear Axle | 142-12 mm Thru-Axle (TA) |
| Rear Derailleur Hanger | Integrated |
| Rack Mounts | Front and rear rack compatible |
| Fenders | Yes |
| Water Bottle Mounts | 1 standard + 3 3-pack bosses |
| Stem Clamp | 28.6 mm |
| Other Features | Head tube rack mount for FC05 |
