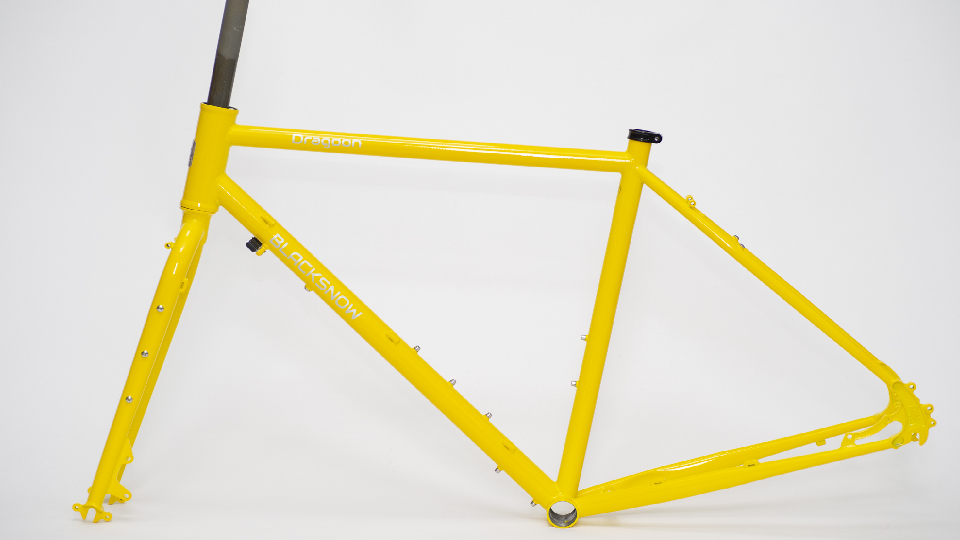

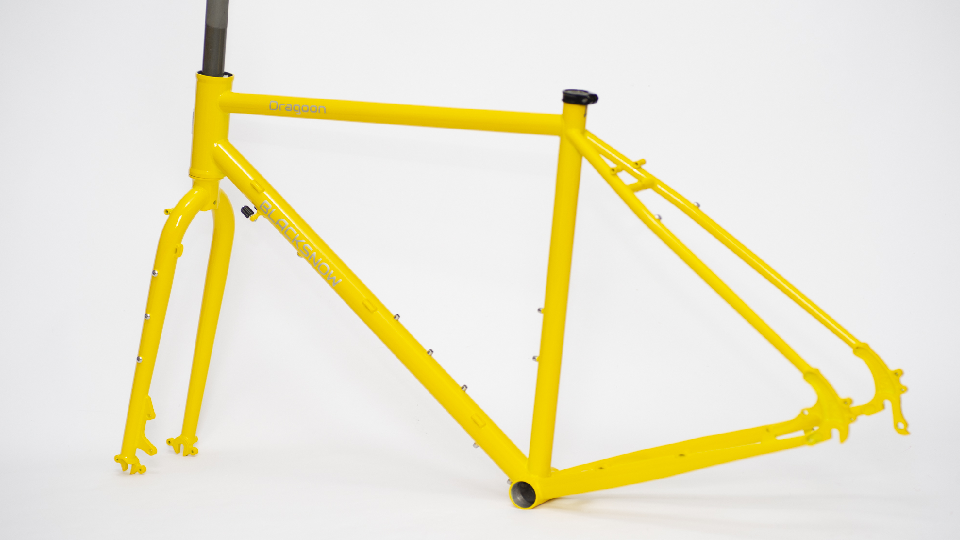

Dragoon MK2 Frameset
Price: 599 US$
BLACKSNOW - Gravel & Traveller
Recommended Score
5 points
Select Color
Select Size
Select Material
Stock：In Stock
Financing with PayPal
Financing with Visa
Financing with MasterCard
Pay with USDT (Crypto — BEP20 / TRC20)Dragoon MK2 Frameset details
With the popularity of gravel and bikepacking, we built Dragoon for a fast and lightweight riding style. Both 650b & 700c tires compatibility makes this bike super versatile. Optimized height and stack geometry is friendly for casual riding with a road drop bar. Now Dragoon comes to the mark ii version with a new developed steel fork.

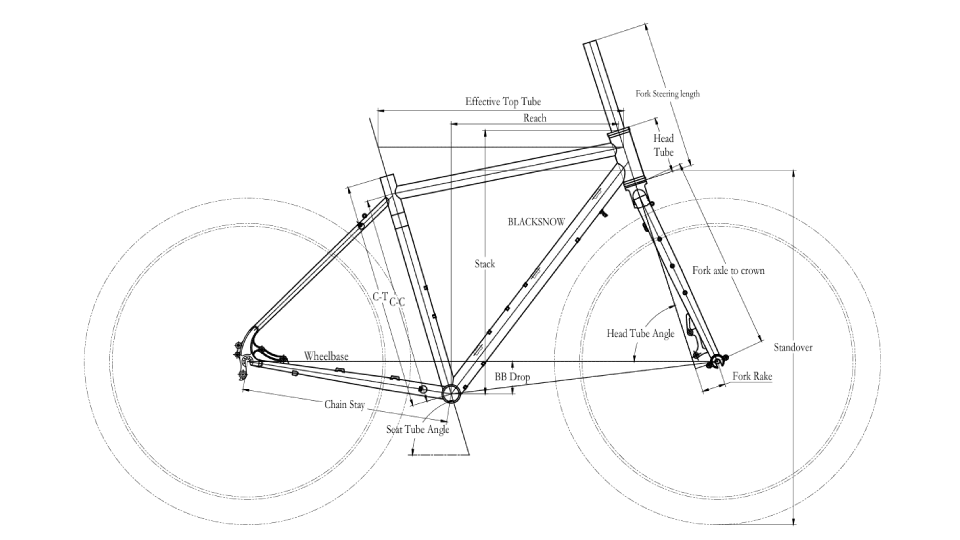

| Geometry | |||||
| Dragoon MK2 2021 Geometry | 46 cm | 49 cm | 52 cm | 55 cm | 58 cm |
| Seat Tube (C-T) | 460 | 490 | 520 | 550 | 580 |
| Seat Tube (C-C) | 420 | 450 | 480 | 505 | 535 |
| Effective Top Tube | 520 | 530 | 545 | 565 | 590 |
| Chain Stay | 445 | 445 | 445 | 445 | 445 |
| Head Tube | 100 | 120 | 140 | 160 | 180 |
| Head Tube Angle | 71.5 | 72 | 72 | 72 | 71.5 |
| Seat Tube Angle | 74 | 73.5 | 73 | 72.5 | 71.5 |
| BB Drop | 70 | 70 | 70 | 70 | 70 |
| Standover* | 729 | 753 | 779 | 803 | 831 |
| Top Tube Angle | 13.6 | 11.4 | 10 | 8.5 | 8 |
| Reach | 362 | 360 | 365 | 379 | 390 |
| Stack | 547 | 568 | 587 | 606 | 633 |
| Fork rake | 48 | 48 | 48 | 48 | 48 |
| Fork top tube length | 320 | 320 | 320 | 320 | 320 |
| Fork axle to crown | 420 | 420 | 420 | 420 | 420 |
| Wheelbase | 1013 | 1014 | 1020 | 1045 | 1070 |
| weight（fork）kg | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| weight（Frameset）kg | 2.22 | 2.26 | 2.3 | ||
| *Standover is mesured on tire 27.5" - 2.0 (684mm) | |||||
| Specification | |
| Dragoon MK2 Specification | |
| Frame Material | 4130 Cr-Mo , main triangle double buttered to 0.9-0.6-0.9mm |
| Fork Material | 4130 Cr-Mo |
| Max Tire (w/o fender) | 700C-50 or 27.5-2.4 |
| Max Tire (w/ fender) | 700C-50 or 27.5-2.4 |
| Fork Height (axle to crown) | 420 mm |
| Fork Offset | 48 mm |
| Headset | 44mm （ZS44/28.6 | ZS44/30) |
| Seat Post | 27.2mm |
| Seat Collar | 29.8mm |
| Front Derailleur | 28.6mm band-on, down tube pull |
| Bottom Bracket | 68mm BSA threaded |
| Crank set | 48-36-26T (max) |
| Front Brake | Flat Mount (Carbon) / I.S. (Steel)160mm Rotor (max) |
| Front Axle | 12-100 TA (Carbon)/10-100mm QR (Cr-Mo ) |
| Rear Brake | IS Disc Brake, 160mm Rotor(max) |
| Rear Axle | 10-135mm QR |
| Rear Derailleur Hanger | Integrated |
| Rack Mounts | Front rack M5 boss, Rear rack M6 boss |
| Fenders | Yes |

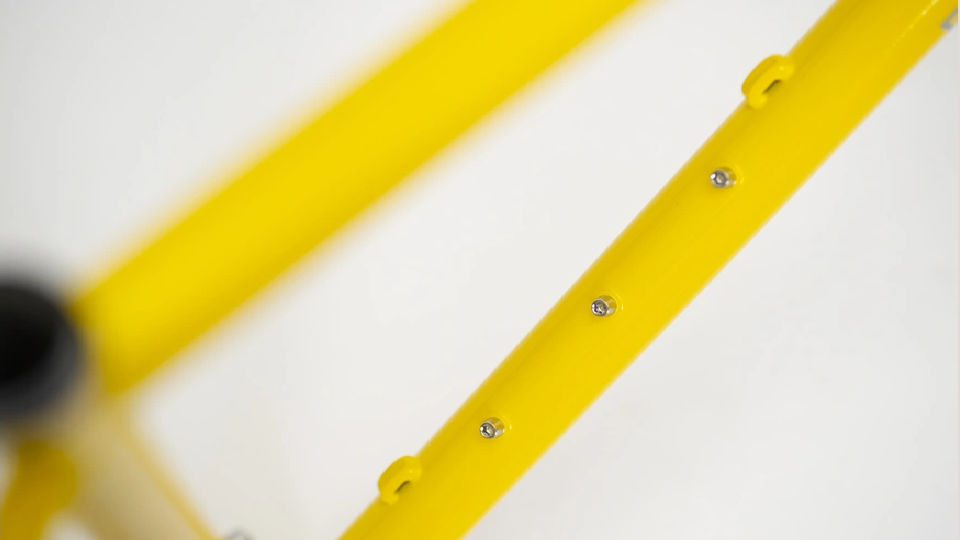

| Water Bottle Mounts | 5 standard |
| Stem Clamp | 28.6mm |
| Other features | Rohloff OEM2 axle plate compatible |
Customer Reviews
Frequently Asked Questions
What riding is the Dragoon MK2 designed for?
Gravel riding and loaded touring on mixed surfaces.
Is the Dragoon MK2 compatible with 700c wheels?
Yes, fits 700x50c tires without fenders.
How does the Dragoon MK2 compare to the Granite Pro?
Dragoon MK2 uses 4130 Cr-Mo; Granite Pro uses aluminum.
How much does the Dragoon MK2 frameset weigh?
2.22 kg for size 46cm, fork is 1.4 kg.
What material is the Dragoon MK2 frame?
4130 Cr-Mo steel, double butted main triangle.
What is the price of the Dragoon MK2 frameset?
Check product page for current pricing.
