Geometry |
||||
| 46cm | 49cm | 52cm | 55cm | |
| Seat Tube (C-T) | 460 | 490 | 520 | 550 |
| Seat Tube (C-C) | 420 | 450 | 480 | 510 |
| Effective Top Tube | 515 | 530 | 545 | 560 |
| Chain Stay | 435 | 435 | 435 | 435 |
| Head Tube | 110 | 130 | 150 | 180 |
| Head Tube Angle | 71 | 71.5 | 72 | 72 |
| Seat Tube Angle | 74 | 74 | 74 | 74 |
| BB Drop | 68 | 68 | 68 | 68 |
| Standover * | 742 | 765 | 791 | 820 |
| Top Tube Angle | 12.1 | 11.8 | 10.6 | 9.6 |
| Reach | 359 | 368 | 375 | 385 |
| Stack | 544 | 565 | 586 | 614 |
| Fork Rake | 50 | 50 | 50 | 50 |
| Fork Steering Tube | 300 | 300 | 300 | 300 |
| Fork Axle to Crown | 400 | 400 | 400 | 400 |
| Wheelbase | 1000 | 1011 | 1020 | 1039 |
| *Standover is mesuared when tire 700C-42(633) installed | ||||
Specification |
|
| Frame Material | 4130 Cr-Mo , main triangle double buttered & heat treated |
| Fork Material | 4130 Cr-Mo |
| Max Tire (w/o fender) | 27.5*2.0 or 700C-42 |
| Max Tire (w/ fender) | 27.5*2.0 or 700C-38 |
| Fork Height | 390 mm |
| Fork Offset | 51 mm |

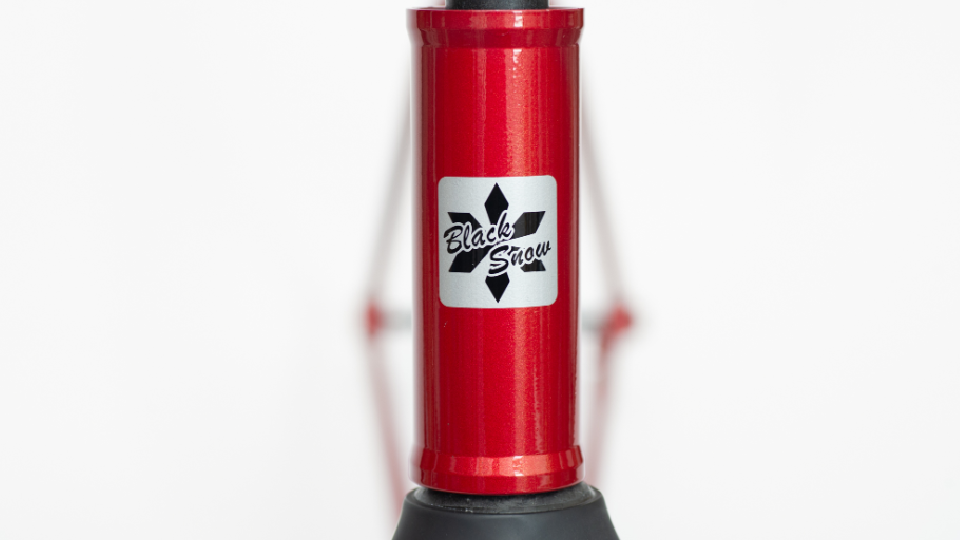

| Headset | 44mm (ZS44/28.6 | EC44/40) |
| Stem Clamp | 28.6 mm |
| Seat Post | 27.2 mm |

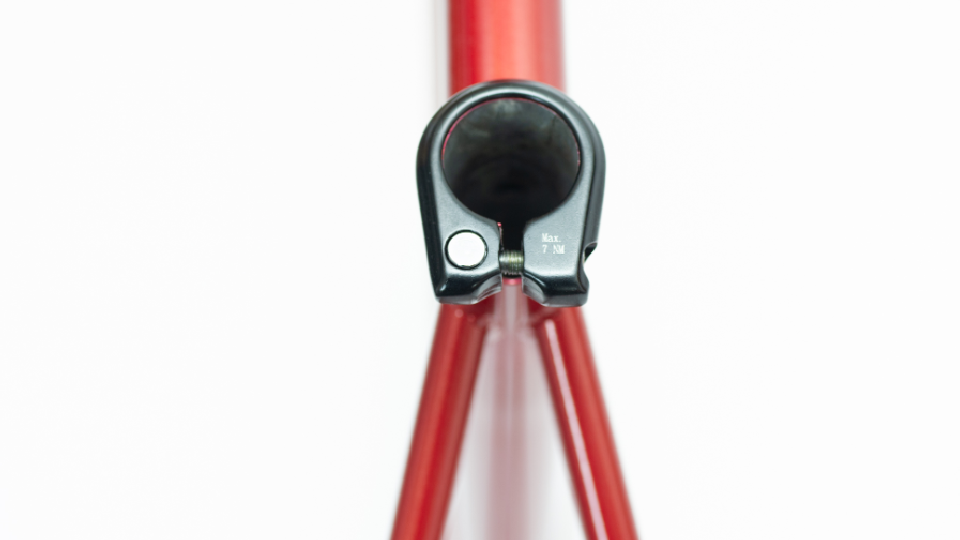

| Seat Post Clamp | 29.8 mm |
| Front Derailleur | 28.6mm band-on, down tube pull |

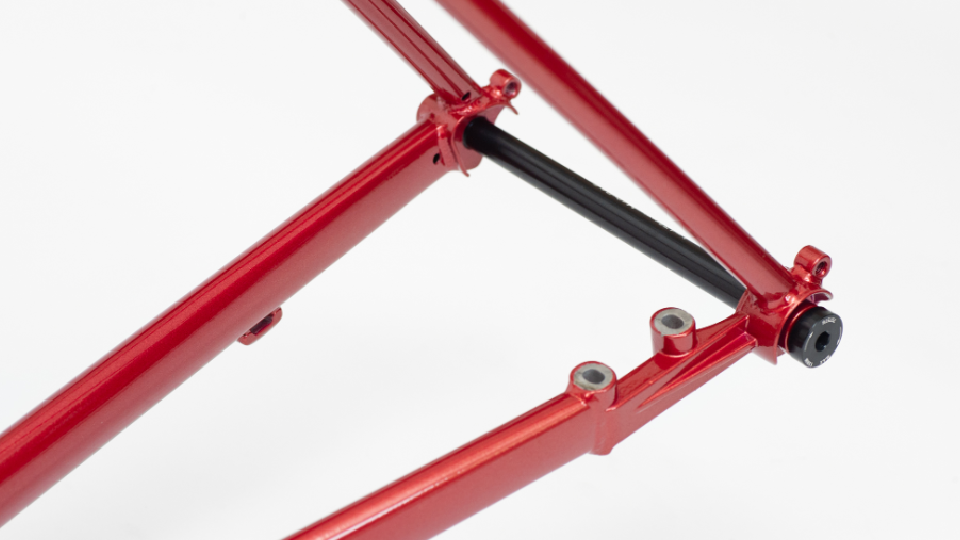

| Rear Derailleur Hanger | Replaceable |
| Crank set | 52-36t road or gravel crankset (max) |
| Bottom Bracket | 68 mm BSA threaded |
| Front Brake | Flat Mount Disc Brake 160mm rotor(max) |
| Rear Brake | Flat Mount Disc Brake 160mm rotor(max) |
| Front Axle | 12-100 mm TA |
| Rear Axle | 12-142 mm TA |
| Rack Mount | Front / rear rack compatible |
| Fender Mount | Yes |

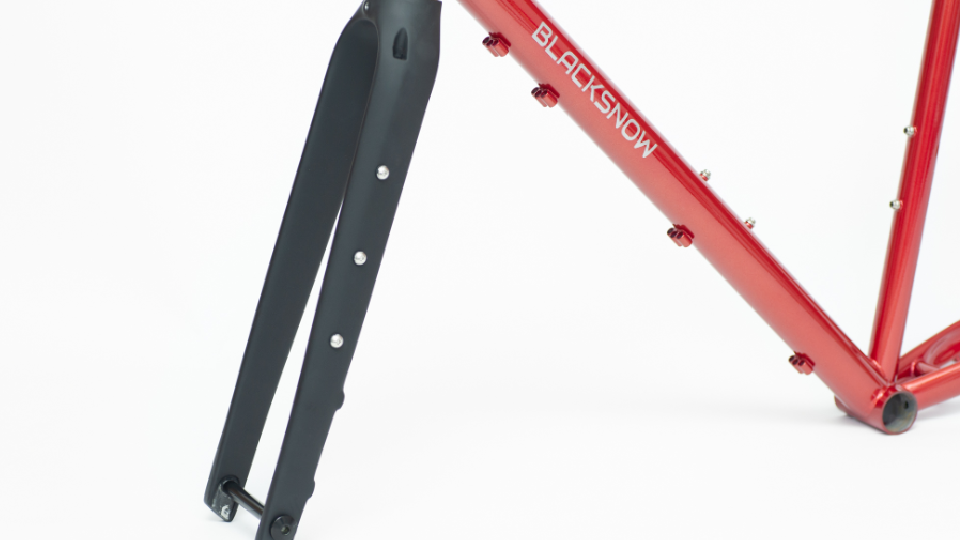

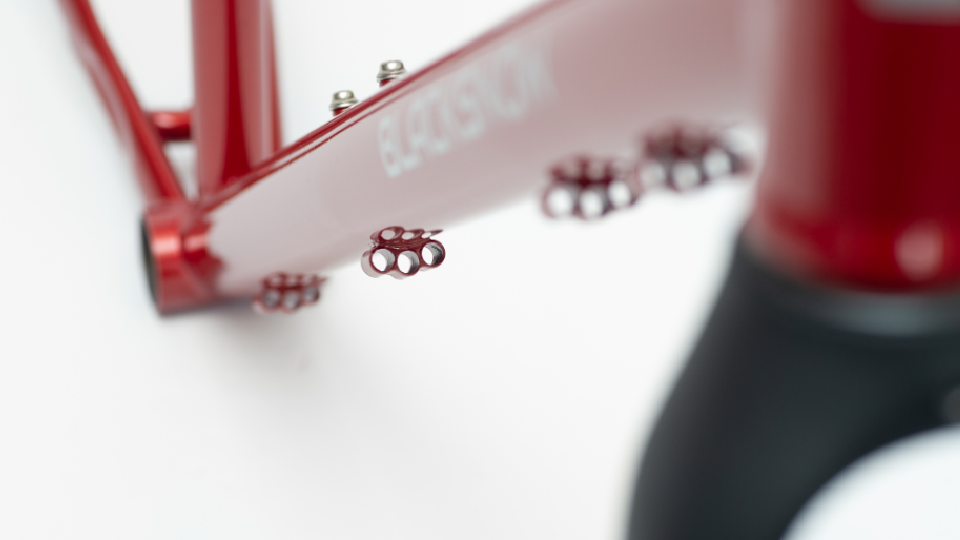

| Water Cage Mount | 2 standard on frame, 2 three-pack on fork |
| Other Features | / |
